Ball Tracking Robot

I joined BlueStamp Engineering for the exploration and challenge of trying different aspects of engineering over the summer. I had lots of experience with programming so I chose the ball tracking robot as my project. It involves lots of mechanical and electrical engineering which I knew would be a memorable and fun experience for me. My completed robot can be switched between manual and automatic mode. The three buttons on the controller give user a freedom to effortlessly drive the robot as they please.

Engineer School Area of Interest Grade
Sid C Saratoga High School Electrical Engineering Incoming Sophemore

Headstone Image

First Milestone

Technical Progress

Challenges

Next Steps

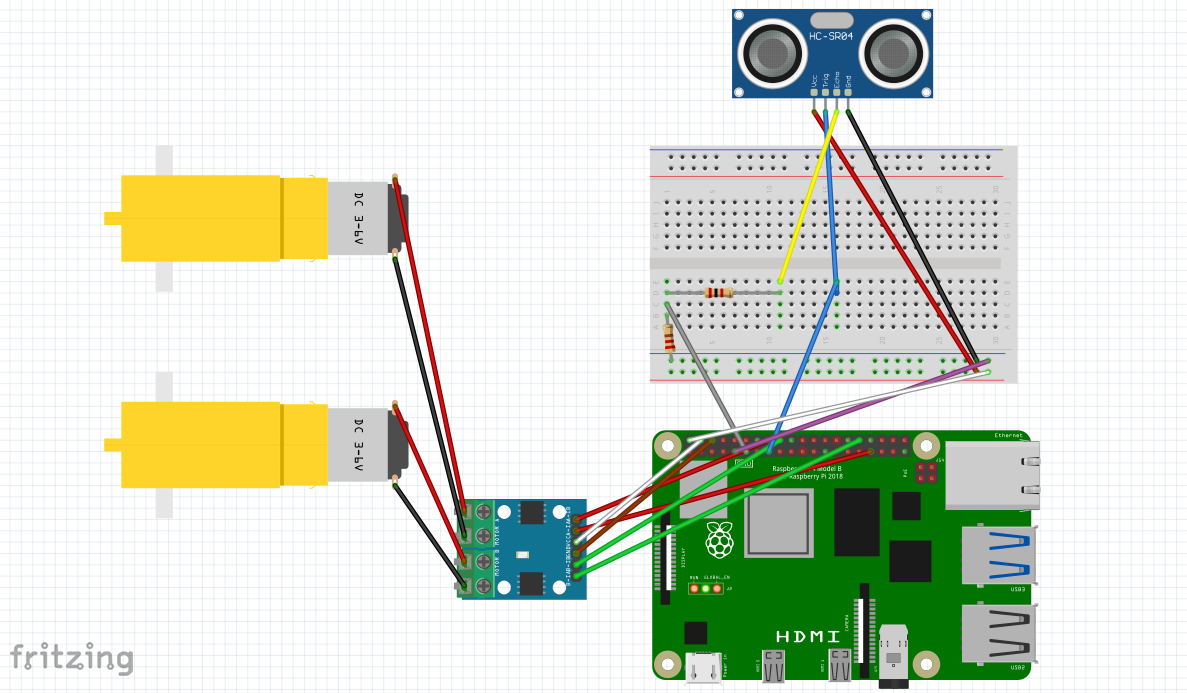

Schematic

Headstone Image

Code

from gpiozero import Motor
from gpiozero import DistanceSensor
motorL = Motor(13,23)
motorR = Motor(12,24)
ultrasonic = DistanceSensor(echo=17, trigger=27, threshold_distance=0.5)
while True:
    while (ultrasonic.distance>0.15):
        motorL.stop()
        motorR.stop()
        print(ultrasonic.distance*100,"cm")
        motorL.forward()
    while (ultrasonic.distance<=0.15):
        motorL.stop()
        motorR.stop()
        print(ultrasonic.distance*100,"cm")
        motorR.forward()

Second Milestone

Technical Progress

Challenges

Next Step

Code

from flask import Flask, Response, render_template_string
from picamera2 import Picamera2
import cv2
import numpy as np
from gpiozero import Motor
import time
#initialize motors
motorL = Motor(13,23)
motorR = Motor(12,24)
motorL.stop()
motorR.stop()
app = Flask(__name__)

# Initialize PiCam
picam2 = Picamera2()
picam2.configure(picam2.create_preview_configuration(main={"format": "RGB888", "size": (640, 480)}))
picam2.start()
FOCAL_LENGTH = 534.643275487 #pixels, experimental
BALL_DIAMETER = 7*2.54 #cm

#PID Variables (kp, ki, kd are constant)
kp_turn = 0.0015
ki_turn = 0.000005
kd_turn = 0.001
iOffset_turn = 0
prevOffset_turn = 0

kp_distance = 0.0016
ki_distance = 0.000006
kd_distance = 0.001
iOffset_distance = 0
prevOffset_distance = 0

TARGET_BALL_DISTANCE = 20 #cm
THRESHOLD_SPEED = 0.231 #Wheels don't start spinning until the speed is around 0.231.
FRAME_WIDTH = 640
CENTER_X = FRAME_WIDTH // 2

def PID_turn(offset_turn):
    global iOffset_turn, prevOffset_turn
    iOffset_turn = max(-500, min(500, iOffset_turn + offset_turn))

    dOffset_turn = offset_turn - prevOffset_turn
    P = kp_turn * offset_turn
    I = ki_turn * iOffset_turn
    D = kd_turn * dOffset_turn
    prevOffset_turn = offset_turn
    return P + I + D

def PID_distance(offset_distance):
    global iOffset_distance, prevOffset_distance
    iOffset_distance = max(-500, min(500, iOffset_distance + offset_distance))

    dOffset_distance = offset_distance - prevOffset_distance
    P = kp_distance * offset_distance
    I = ki_distance * iOffset_distance
    D = kd_distance * dOffset_distance
    prevOffset_distance = offset_distance
    return P + I + D

def search(): #The frame rate will drop significantly when searching because it takes 0.1 sec more to return frame
    motorR.forward(speed = 0.35)
    motorL.backward(speed= 0.35)
    time.sleep(0.05)
    motorR.stop()
    motorL.stop()
    time.sleep(0.05)
    print("Searching")

def track_red_ball(frame):
    hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)    #Convert BGR(default of Pi camera) to HSV
    lower_red1 = np.array([0, 100, 100])
    upper_red1 = np.array([10, 255, 255])
    lower_red2 = np.array([160, 100, 100])
    upper_red2 = np.array([179, 255, 255])

    mask1 = cv2.inRange(hsv, lower_red1, upper_red1)
    mask2 = cv2.inRange(hsv, lower_red2, upper_red2)
    mask = cv2.bitwise_or(mask1, mask2)

    mask = cv2.erode(mask, None, iterations=2)      #Remove 2 pixels around noise
    mask = cv2.dilate(mask, None, iterations=2)     #Add back the pixels

    #Contour(image segmentation) and centroid
    contours, _ = cv2.findContours(mask, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)

    if contours:
        largest = max(contours, key=cv2.contourArea)
        M = cv2.moments(largest)
        if M["m00"] > 0:
            cx = int(M["m10"]/M["m00"])     #Average of XY-values on the contours
            cy = int(M["m01"]/M["m00"])     #will be the center(centroid) of the object

            #Use radius to see if the object detected is the ball. Not the ball if radius<20
            ((x, y), radius) = cv2.minEnclosingCircle(largest)

            if radius > 20:

                #Find offset distance from target distance of ball then calculate distanceSpeed
                distance = 534.643275487 * BALL_DIAMETER / (radius*2) #Using focal length to calc distance. pixels*cm/pixels = cm Focal Length * real width / perceived width
                offset_distance = distance - TARGET_BALL_DISTANCE
                distanceSpeed = 10*PID_distance(offset_distance) #distance in cm is smaller than offset_turn
                if distanceSpeed > 0.7:
                    distanceSpeed = 0.7

                #Find offset from center then calculate turnSpeed
                offset_turn = cx - CENTER_X
                turnSpeed = PID_turn(offset_turn)
                if radius > 45 and radius <120:
                    turnSpeed = (turnSpeed/distance)*28
                if turnSpeed >0.4: #Prevent from overturning
                    turnSpeed = 0.4

                if offset_distance < -3:
                    positionD = "Too close"
                elif offset_distance > 3:
                    positionD = "Too far"
                else:
                    positionD = "Centered"
                if abs(offset_turn) < 40:
                    position = "Centered"
                    Speed = distanceSpeed #Negative when too close; Positive when too far
                    if Speed < THRESHOLD_SPEED:
                        Speed = THRESHOLD_SPEED
                    elif abs(Speed) > 0.6: #Prevent from going too fast
                        Speed = 0.6
                    if abs(offset_distance)<3:
                        position = "Perfectly Centered"
                        positionD = "Perfectly Centered"
                        Speed = 0
                    motorR.value = Speed
                    motorL.value = Speed
                    print(Speed)
                else: #Turn only without moving backward or forward
                    Speed = abs(turnSpeed)
                    if Speed < THRESHOLD_SPEED:
                        Speed = THRESHOLD_SPEED
                    elif Speed > 0.42: #Prevent from turning too fast. It overshoots a lot without this conditional
                        Speed = 0.42
                    if offset_turn < 0:
                        position = "Left"
                        motorR.forward(speed = Speed)
                        motorL.backward(speed = Speed)
                    elif offset_turn > 0:
                        position = "Right"
                        motorL.forward(speed = Speed)
                        motorR.backward(speed = Speed)
                print(Speed)
                cv2.drawContours(frame, [largest], -1, (0,255,0), 2)
                cv2.circle(frame, (cx,cy), 5, (255,0,0),-1)
                cv2.putText(frame, f"Offset_turn: {offset_turn} ({position})", (cx-120, cy-30), #Label the object with its "Position"
                            cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255,255,255), 2)
                cv2.putText(frame, f"Offset_distance: {offset_distance//1} ({positionD})", (cx-120, cy-60), #Label the object with its "PositionD"
                            cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255,255,255), 2)
                cv2.putText(frame, f"Radius: {radius//1.00} ", (cx-100, cy-90), #Label the object with its "PositionD"
                            cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255,255,255), 2)
            else:
                search()

    else: #Search if no object found
        motorR.stop()
        motorL.stop()
        search()

    return frame

def generate_frames():
    while True:
        frame = picam2.capture_array()
        frame = track_red_ball(frame)
        ret, buffer = cv2.imencode('.jpg', frame)
        jpg_frame = buffer.tobytes()
        yield (b'--frame\r\n'
               b'Content-Type: image/jpeg\r\n'
               b'Content-Length: ' + f"{len(jpg_frame)}".encode() + b'\r\n\r\n' +
               jpg_frame + b'\r\n')

@app.route('/')
def index():
    return render_template_string('''
        <html>
            <head><title>Red Ball Tracking Stream</title></head>
            <body>
                <h2>Live Tracking</h2>
                <img src="/video_feed">
            </body>
        </html>
    ''')

@app.route('/video_feed')
def video_feed():
    return Response(generate_frames(),
                    mimetype='multipart/x-mixed-replace; boundary=frame')

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000)

Final Milestone

Technical Progress

Challenges

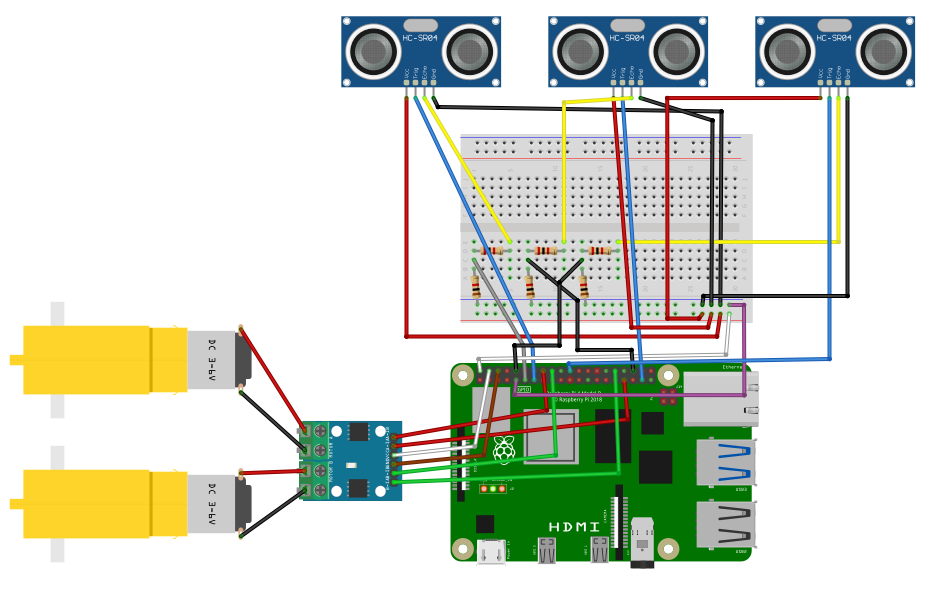

Schematics

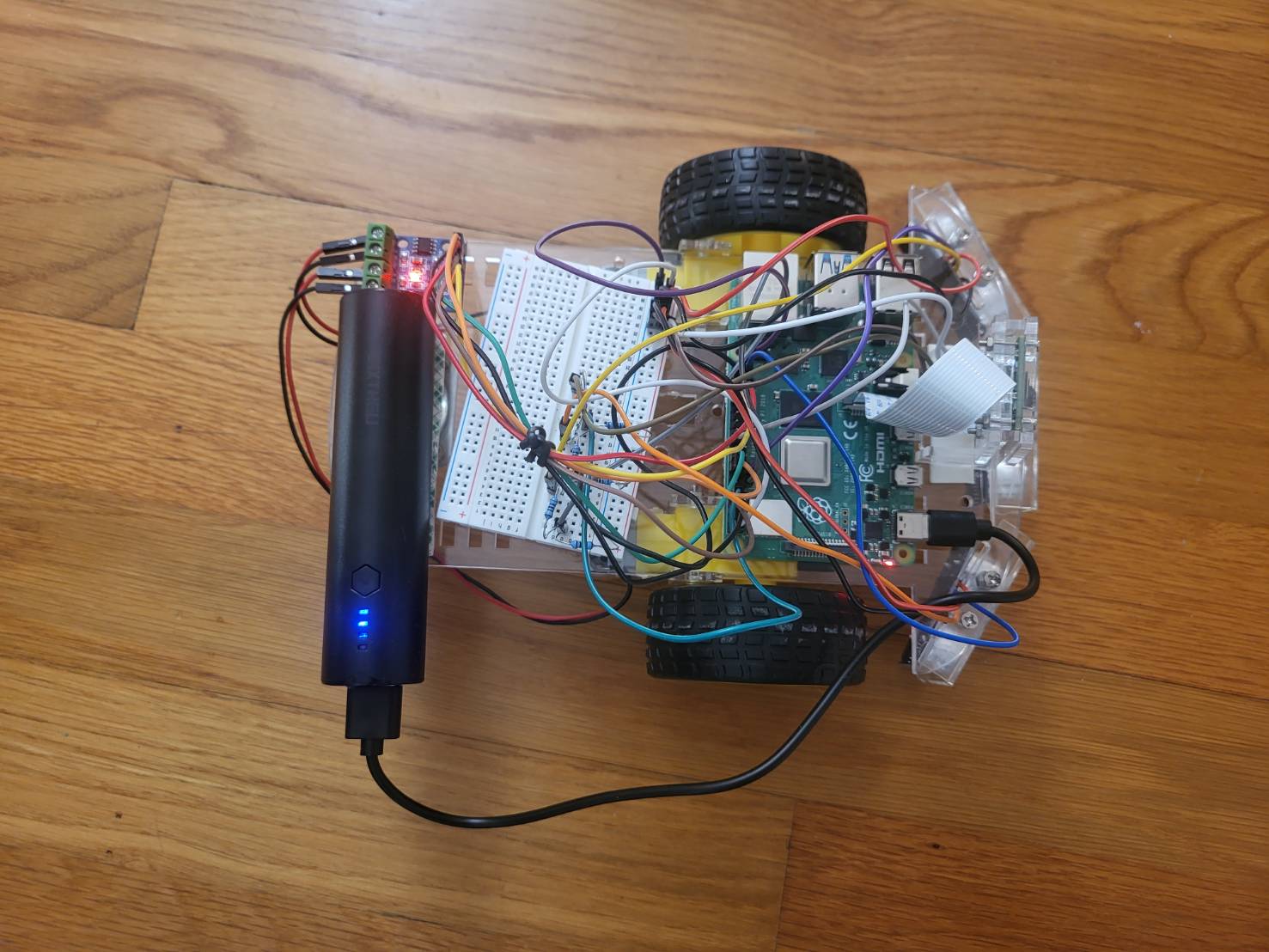

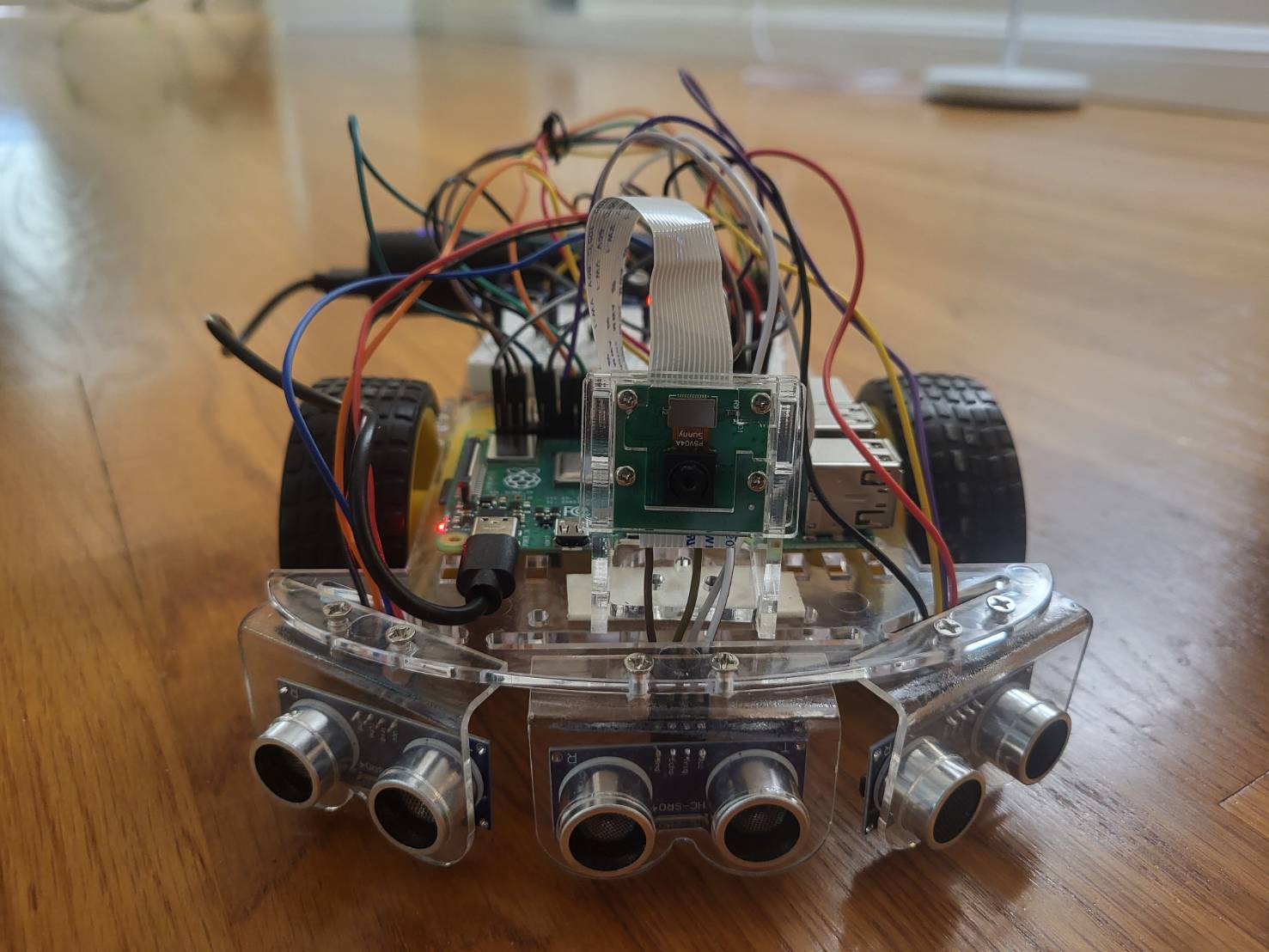

Robot Headstone Image Headstone Image Headstone Image

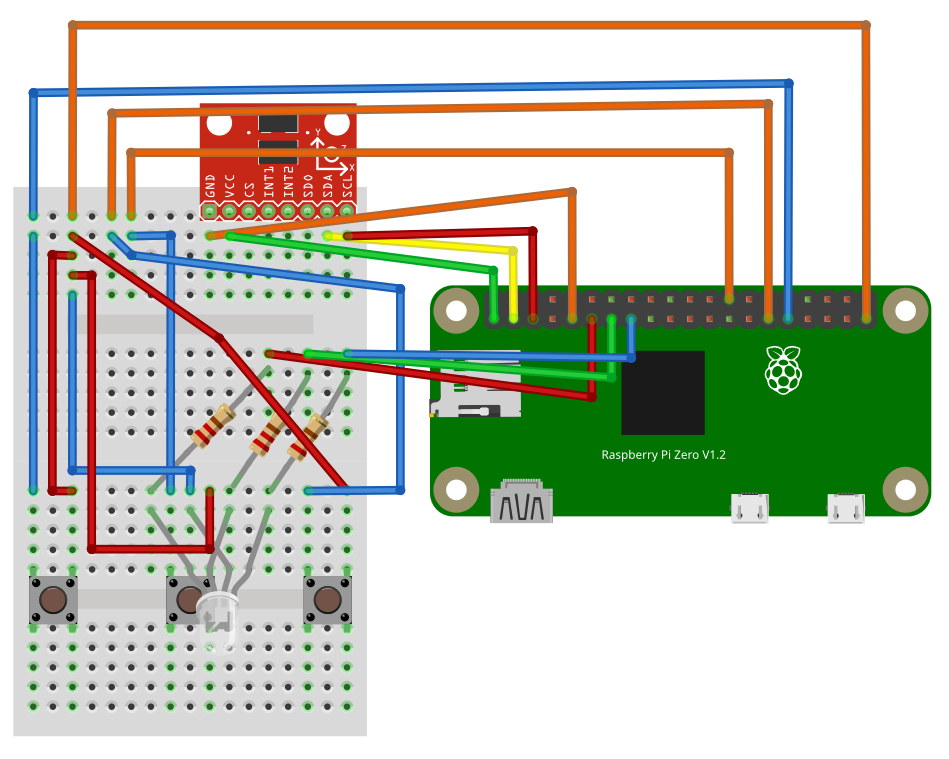

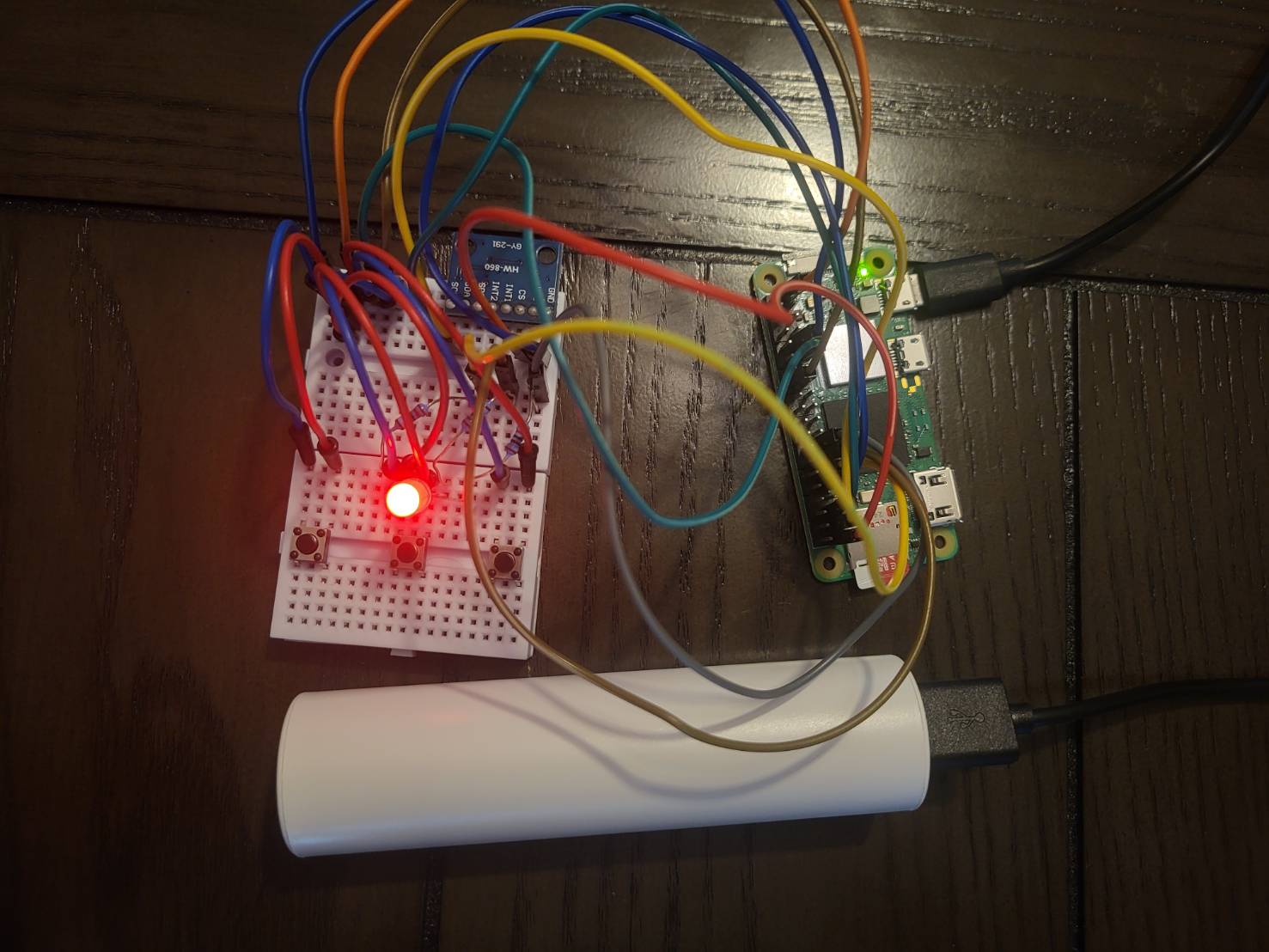

Controller Headstone Image Headstone Image

Code

Robot (Raspberry Pi 4)

from flask import Flask, Response, render_template_string
from picamera2 import Picamera2
import cv2
import numpy as np
from gpiozero import Motor, DistanceSensor
import time
import socket
import json
import struct
import threading
import queue # For thread-safe communication

# --- Global Configuration ---
HOST = "0.0.0.0"  # Listen on all available network interfaces
PORT = 65432      # The port used by the server

# --- Initialize Hardware Globally ---
motorL = Motor(13, 23)
motorR = Motor(12, 24)
motorL.stop()
motorR.stop()

ultrasonicL = DistanceSensor(echo=17, trigger=27, threshold_distance=0.5)
ultrasonicR = DistanceSensor(echo=16, trigger=26, threshold_distance=0.5)
ultrasonicF = DistanceSensor(echo=15, trigger=25, threshold_distance=0.5)

# Initialize PiCam
picam2 = Picamera2()
picam2.configure(picam2.create_preview_configuration(main={"format": "RGB888", "size": (640, 480)}))
picam2.start()

app = Flask(__name__)

# --- Global Variables for Robot State & Control ---
# These variables are accessed/modified by multiple threads, so protect them with a lock
mode = 'manual' # MODE can be 'manual' or 'auto'
manual_speed = 0.4
color = 1 # Default track red
Speed = 0 # Current robot speed (for auto mode)

# Variables for manual control input from client
client_x_input = 0.0
client_y_input = 0.0

#PID Variables (kp, ki, kd are constant)
kp_turn = 0.0015
ki_turn = 0.000005
kd_turn = 0.001
iOffset_turn = 0
prevOffset_turn = 0

kp_distance = 0.0016
ki_distance = 0.000006
kd_distance = 0.001
iOffset_distance = 0
prevOffset_distance = 0

TARGET_DISTANCE = 20 #cm
THRESHOLD_SPEED = 0.231 #Wheels don't start spinning until the speed is around 0.231.
FRAME_WIDTH = 640
CENTER_X = FRAME_WIDTH // 2
FOCAL_LENGTH = 534.643275487 #pixels, experimental, used only when tracking redball
BALL_DIAMETER = 7*2.54 #cm

# --- Thread-safe queue for incoming socket data ---
socket_data_queue = queue.Queue()

# --- Threading Lock for Global Variables ---
global_vars_lock = threading.Lock()

# --- Helper Function to ensure all bytes are received ---
def receive_all(sock, n_bytes):
    #Helper function to ensure all 'n_bytes' are received from the socket.
    data = b''
    while len(data) < n_bytes:
        packet = sock.recv(n_bytes - len(data))
        if not packet:
            return None # Connection closed or error
        data += packet
    return data

# --- Socket Listener Thread Function ---
def socket_listener():
    print(f"Socket listener starting on {HOST}:{PORT}")
    while True: # Keep the server running even if a client disconnects
        with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
            s.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1) # Allows immediate reuse of address
            s.bind((HOST, PORT))
            s.listen()
            print("Waiting for a client connection...")
            conn, addr = s.accept()
            with conn:
                print(f"Connected by {addr}")
                while True:
                    # 1. Receive the 4-byte message length prefix
                    raw_msg_len = receive_all(conn, 4)
                    if not raw_msg_len: # Client disconnected
                        print(f"Client {addr} disconnected.")
                        break # Exit inner while loop to wait for new client

                    msg_len = struct.unpack('>I', raw_msg_len)[0] #msg_len is the num of bytes of the data

                    # 2. Receive the actual JSON message based on the length
                    json_data_bytes = receive_all(conn, msg_len)
                    if not json_data_bytes: # Client disconnected during data receipt
                        print(f"Client {addr} disconnected prematurely.")
                        break # Exit inner while loop

                    # 3. Decode the bytes to a UTF-8 string
                    json_string = json_data_bytes.decode('utf-8')
                    # print(f"Received raw JSON string: {json_string}") # Uncomment for debugging

                    # 4. Parse the JSON string into a Python dictionary
                    received_data = json.loads(json_string)

                    # Put the received data into the queue for the main thread
                    socket_data_queue.put(received_data)

# --- Helper Functions for Robot Control and Vision ---
def PID_turn(offset_turn):
    global iOffset_turn, prevOffset_turn
    iOffset_turn = max(-500, min(500, iOffset_turn + offset_turn))

    dOffset_turn = offset_turn - prevOffset_turn
    P = kp_turn * offset_turn
    I = ki_turn * iOffset_turn
    D = kd_turn * dOffset_turn
    prevOffset_turn = offset_turn
    return P + I + D

def PID_distance(offset_distance):
    global iOffset_distance, prevOffset_distance
    iOffset_distance = max(-500, min(500, iOffset_distance + offset_distance))

    dOffset_distance = offset_distance - prevOffset_distance
    P = kp_distance * offset_distance
    I = ki_distance * iOffset_distance
    D = kd_distance * dOffset_distance
    prevOffset_distance = offset_distance
    return P + I + D

def search(): #The frame rate will drop significantly when searching because it takes 0.7 sec more to return frame
    motorR.forward(speed = 0.35)
    motorL.backward(speed= 0.35)
    time.sleep(0.05)
    motorR.stop()
    motorL.stop()
    time.sleep(0.035)
    print("Searching")
    with global_vars_lock: # Protect access to global Speed
        global Speed
        Speed = 0.35

#Different colors of masks
def get_color_mask(hsv_frame):
    with global_vars_lock: # Protect access to global color
        current_color = color # Read the color value

    if current_color  == 1: # Red
        lower_red1 = np.array([0, 100, 100])
        upper_red1 = np.array([10, 255, 255])
        lower_red2 = np.array([160, 100, 100])
        upper_red2 = np.array([179, 255, 255])
        mask_red1 = cv2.inRange(hsv_frame, lower_red1, upper_red1)
        mask_red2 = cv2.inRange(hsv_frame, lower_red2, upper_red2)
        return cv2.bitwise_or(mask_red1, mask_red2)
    else:
        # Define ranges for other colors
        color_ranges = {
            2: ([10, 100, 100], [25, 255, 255]), # Orange
            3: ([25, 100, 100], [35, 255, 255]), # Yellow
            4: ([35, 50, 50], [85, 255, 255]),   # Green
            5: ([90, 50, 50], [130, 255, 255]),  # Blue
            6: ([130, 50, 50], [160, 255, 255]), # Purple / Magenta
            7: ([0, 0, 200], [179, 50, 255]),    # White
            8: ([0, 0, 0], [179, 255, 50])       # Black

        }
        lower_mask, upper_mask = color_ranges.get(current_color, (None, None))
        return cv2.inRange(hsv_frame, np.array(lower_mask), np.array(upper_mask))

def track(frame):
    global Speed, mode
    # Acquire lock before reading global mode and Speed for thread safety
    with global_vars_lock:
        current_mode = mode
        current_speed_auto = Speed # Read the current auto speed

    # This function should only be called if in auto mode, but added check for robustness
    if current_mode != 'auto':
        return frame

    hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)
    current_mask = get_color_mask(hsv) # Use the renamed function
    current_mask = cv2.erode(current_mask, None, iterations=2)
    current_mask = cv2.dilate(current_mask, None, iterations=2)

    contours, _ = cv2.findContours(current_mask, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)

    if contours:
        largest = max(contours, key=cv2.contourArea)
        M = cv2.moments(largest)
        if M["m00"] > 0:
            cx = int(M["m10"]/M["m00"])     #Average of XY-values on the contours
            cy = int(M["m01"]/M["m00"])     #will be the center(centroid) of the object

            #Use radius to see if the object detected is the ball. Not the ball if radius<20
            ((x, y), radius) = cv2.minEnclosingCircle(largest)

            if radius > 20:
                if color == 1:
                    #Find offset distance from target distance of ball then calculate distanceSpeed

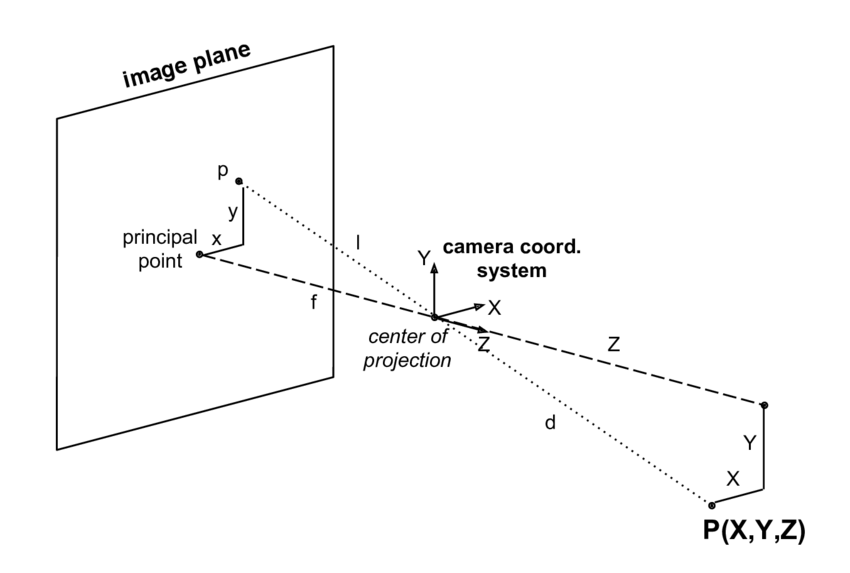

                    distance = 534.643275487 * BALL_DIAMETER / (radius*2) #Using focal length to calc distance. pixels*cm/pixels = cm Focal Length * real width / perceived width
                else:
                    distance = ultrasonicF.distance*100
                offset_distance = distance - TARGET_DISTANCE
                distanceSpeed = 10*PID_distance(offset_distance) #distance in cm is smaller than offset_turn
                if distanceSpeed > 0.7:
                    distanceSpeed = 0.7

                #Find offset from center then calculate turnSpeed
                offset_turn = cx - CENTER_X
                turnSpeed = PID_turn(offset_turn)
                if radius > 45 and radius <120:
                    turnSpeed = (turnSpeed/distance)*28
                if turnSpeed >0.4: #Prevent from overturning
                    turnSpeed = 0.4

                if offset_distance < -3:
                    positionD = "Too close"
                elif offset_distance > 3:
                    positionD = "Too far"
                else:
                    positionD = "Centered"
                if abs(offset_turn) < 40:
                    position = "Centered"
                    Speed = distanceSpeed #Negative when too close; Positive when too far
                    if Speed < THRESHOLD_SPEED:
                        Speed = THRESHOLD_SPEED
                    elif abs(Speed) > 0.6: #Prevent from going too fast
                        Speed = 0.6
                    if abs(offset_distance)<3:
                        position = "Perfectly Centered"
                        positionD = "Perfectly Centered"
                        Speed = 0
                    motorR.value = Speed
                    motorL.value = Speed
                else: #Turn only without moving backward or forward
                    Speed = abs(turnSpeed)
                    if Speed < THRESHOLD_SPEED:
                        Speed = THRESHOLD_SPEED
                    elif Speed > 0.4: #Prevent from turning too fast. It overshoots a lot without this conditional
                        Speed = 0.4
                    if offset_turn < 0:
                        position = "Left"
                        motorR.forward(speed = Speed)
                        motorL.backward(speed = Speed)
                    elif offset_turn > 0:
                        position = "Right"
                        motorL.forward(speed = Speed)
                        motorR.backward(speed = Speed)
                cv2.drawContours(frame, [largest], -1, (0,255,0), 2)
                cv2.circle(frame, (cx,cy), 5, (255,0,0),-1)
                cv2.putText(frame, f"Offset_turn: {offset_turn} ({position})", (cx-120, cy-30),
                            cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255,255,255), 2)
                cv2.putText(frame, f"Offset_distance: {offset_distance//1} {ultrasonicF.distance*100//1} ({positionD})", (cx-120, cy-60),
                            cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255,255,255), 2)
                cv2.putText(frame, f"Radius: {radius//1.00} ", (cx-100, cy-90),
                            cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255,255,255), 2)

        else: # No valid moment
            motorR.stop()
            motorL.stop()
            search()
            cv2.putText(frame, f"Searching...", (20, 130), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), 2)

    else: # No contours found
        motorR.stop()
        motorL.stop()
        search()
        cv2.putText(frame, f"Searching...", (20, 130), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), 2)

    return frame

# --- Generator Function for Video Feed ---
def generate_frames():
    global mode, color, manual_speed, client_x_input, client_y_input, Speed # Declare global variables accessed/modified here

    with global_vars_lock:
        print(f"Current Mode: {mode.upper()}")
    print("-" * 20)

    while True:
        # --- Process incoming socket data (non-blocking) ---
        try:
            received_data = socket_data_queue.get(block=False) # Try to get data without blocking
            print(f"Received data from socket: {received_data}")

            with global_vars_lock: # Acquire lock before updating global variables
                if "Color" in received_data:
                    color = received_data["Color"]

                # Update X and Y inputs for manual control
                if "X" in received_data:
                    client_x_input = received_data["X"]
                if "Y" in received_data:
                    client_y_input = received_data["Y"]

                if "SwitchMode" in received_data and received_data["SwitchMode"] is True:
                    if mode == 'manual':
                        mode = 'auto'
                        motorL.stop() # Ensure motors stop when switching mode
                        motorR.stop()
                        # Reset PID integrators when switching to auto mode, so it wouldn't learn from the offsets of previous auto session
                        global iOffset_turn, prevOffset_turn, iOffset_distance, prevOffset_distance
                        iOffset_turn = 0
                        prevOffset_turn = 0
                        iOffset_distance = 0
                        prevOffset_distance = 0
                    elif mode == 'auto':
                        mode = 'manual'
                        motorL.stop() # Ensure motors stop when switching mode
                        motorR.stop()
                    print(f"Switched to {mode.upper()} mode.")

        except queue.Empty:
            # No new data from socket, continue
            pass

        frame = picam2.capture_array()

        # Read mode and current speed within a lock for safety
        with global_vars_lock:
            current_mode = mode
            current_speed_auto = Speed
            current_manual_speed = manual_speed
            current_x_input = client_x_input
            current_y_input = client_y_input

        if current_mode == 'auto':
            frame = track(frame) # track function handles motor control and updates global Speed
            cv2.putText(frame, "AUTO MODE", (20, 50), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), 2)
            cv2.putText(frame, f"Speed: {current_speed_auto:.3f}", (20, 90), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), 2)
            cv2.putText(frame, f"Color: {color}", (FRAME_WIDTH-200, 50), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), 2)
        else: # In manual mode
            motorR.stop() # Ensure motors are stopped if not actively controlled by manual input
            motorL.stop()
            tilt_threshold = 4.0 # Adjust this threshold based on your client's X/Y range

            # Manual control logic based on X, Y input from client
            if current_x_input > tilt_threshold: # Tilt Right
                motorL.forward(speed = current_manual_speed)
                motorR.backward(speed = current_manual_speed)
            elif current_x_input < -tilt_threshold: # Tilt Left
                motorR.forward(speed = current_manual_speed)
                motorL.backward(speed = current_manual_speed)
            elif current_y_input > tilt_threshold: # Tilt Backward
                motorL.backward(speed = current_manual_speed)
                motorR.backward(speed = current_manual_speed)
            elif current_y_input < -tilt_threshold: # Tilt Forward
                if ultrasonicF.distance*100 < 25:#Don't move if running into something
                    motorL.stop()
                    motorR.stop()
                else:
                    motorL.forward(speed = current_manual_speed)
                    motorR.forward(speed = current_manual_speed)
            else: # No significant tilt, stop motors
                motorL.stop()
                motorR.stop()

            # Display information for manual mode
            cv2.putText(frame, "MANUAL MODE", (20, 50), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), 2)
            cv2.putText(frame, f"Speed: {current_manual_speed:.2f}", (20, 90), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 255), 2)

            # Display ultrasonic distances
            cv2.putText(frame, f"R: {ultrasonicR.distance * 100:.2f} cm", (FRAME_WIDTH - 150, 430), cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 255), 2)
            cv2.putText(frame, f"F: {ultrasonicF.distance * 100:.2f} cm", (CENTER_X - 70, 430), cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 255), 2)
            cv2.putText(frame, f"L: {ultrasonicL.distance * 100:.2f} cm", (20, 430), cv2.FONT_HERSHEY_SIMPLEX, 0.7, (0, 255, 255), 2)

        # Encode frame for streaming
        ret, buffer = cv2.imencode('.jpg', frame)

        jpg_frame = buffer.tobytes()
        yield (b'--frame\r\n'
               b'Content-Type: image/jpeg\r\n'
               b'Content-Length: ' + f"{len(jpg_frame)}".encode() + b'\r\n\r\n' +
               jpg_frame + b'\r\n')

# --- Flask Routes ---
@app.route('/')
def index():
    return render_template_string('''
        <html>
            <head><title>Robot Control & Tracking Stream</title></head>
            <body>
                <h2>Live Video Feed</h2>
                <img src="/video_feed" width="640" height="480">
            </body>
        </html>
    ''')

@app.route('/video_feed')
def video_feed():
    return Response(generate_frames(),
                    mimetype='multipart/x-mixed-replace; boundary=frame')

if __name__ == '__main__':
    # Start the socket listener in a separate thread
    socket_thread = threading.Thread(target=socket_listener, daemon=True) # daemon=True allows thread to exit with main program
    socket_thread.start()

    # Start the Flask web server
    # Set debug=False for production on Pi for better performance and to prevent multiple Flask instances
    app.run(host='0.0.0.0', port=5000, debug=False)

Controller (Raspberry Pi Zero 2W)

import json
import socket
import struct # For packing/unpacking message length
import board
import busio
import adafruit_adxl34x # For accelerometer
from gpiozero import RGBLED, Button
from colorzero import Color as GpiozeroColor # Renamed Color import
import time

# --- Hardware Initialization ---
led = RGBLED(17,27,22)
buttonR = Button(5)
buttonL = Button(6)
buttonM = Button(7)

# Initialize I2C communication
# Ensure these pins (SCL, SDA) are correct for your Raspberry Pi model
i2c = busio.I2C(board.SCL, board.SDA)

# Initialize the accelerometer
accelerometer = adafruit_adxl34x.ADXL345(i2c)

# --- Global State Variables ---
# Use a different name for your color variable to avoid conflict with gpiozero.Color
current_color_id = 1 # 1: Red, 2: Orange, ..., 8: Black (or off)

# --- Network Configuration ---
HOST = "192.168.86.25"  # Raspberry Pi's actual IP address
PORT = 65432            # The port used by the server

# --- Helper Function for LED Control ---
def set_led_color(color_id):
    #Sets the RGB LED color based on a numerical ID.
    global led # Ensure modifying the global led object
    if color_id == 1:
        led.color = GpiozeroColor('red')
    elif color_id == 2:
        led.color = GpiozeroColor('orange')
    elif color_id == 3:
        led.color = GpiozeroColor('yellow')
    elif color_id == 4:
        led.color = GpiozeroColor('green')
    elif color_id == 5:
        led.color = GpiozeroColor('blue')
    elif color_id == 6:
        led.color = GpiozeroColor('purple')
    elif color_id == 7:
        led.color = GpiozeroColor('white')
    elif color_id == 8: # Assuming 8 means off/black for your system
        led.off()

# --- Function to send JSON data with length-prefixing ---
def send_json_data(sock, data):

    #Encodes a Python dictionary to a JSON string, prefixes it with its length,
    #and sends it over the given socket.
    json_string = json.dumps(data)
    json_bytes = json_string.encode('utf-8') # Encode to bytes

    msg_len = len(json_bytes)
    # Pack the length into 4 bytes in network byte order (big-endian, unsigned integer)
    msg_len_prefix = struct.pack('>I', msg_len)

    sock.sendall(msg_len_prefix + json_bytes)

# --- Main Client Loop ---
if __name__ == '__main__':
    # Initial LED state
    set_led_color(current_color_id)
    print("Controller started. Waiting for connection...")

    # Use a flag for mode switching to ensure it's a toggle
    current_switch_mode_state = False # Track if a mode switch should be sent

with socket.socket(socket.AF_INET, socket.SOCK_STREAM) as s:
        s.connect((HOST, PORT))
        print(f"Connected to host {HOST}:{PORT}")

        # Keep sending data periodically
        while True:
            # --- Read Accelerometer Data ---
            x_accel, y_accel, z_accel = accelerometer.acceleration

            # --- Button Logic (NO DEBOUNCE) ---
            # These actions will occur for every loop iteration the button is pressed
            if buttonR.is_pressed:
                current_color_id = (current_color_id % 8) + 1 # Cycle through 1-8
                set_led_color(current_color_id)
                print(f"Color changed to: {current_color_id}")

            if buttonL.is_pressed:
                current_color_id -= 1
                if current_color_id < 1:
                    current_color_id = 8 # Cycle back to 8
                set_led_color(current_color_id)
                print(f"Color changed to: {current_color_id}")

            # Mode toggle button: only triggers ONCE per press (rising edge detection)
            send_mode_switch_command = False # Flag to send switch mode command
            if buttonM.is_pressed:
                if not buttonM_was_pressed_last_loop: # This means it was NOT pressed last loop, but IS pressed now
                    send_mode_switch_command = True
                    print("Mode button pressed")
                buttonM_was_pressed_last_loop = True # Update state for next loop
            else:
                buttonM_was_pressed_last_loop = False # Reset state when button is released

            # Prepare data to send
            data_to_send = {
                "Color": current_color_id,
                "SwitchMode": send_mode_switch_command, # Send the flag determined by rising edge
                "X": x_accel,
                "Y": y_accel}

            # Send the data
            send_json_data(s, data_to_send)

            # Reset SwitchMode flag after sending, so it's only True for one packet
            current_switch_mode_state = False
            time.sleep(0.1) # Send data approximately 10 times per second

Bill of Materials

| Part | Note | Price | Link | |:–:|:–:|:–:|:–:| | Raspberry Pi 4 Kit | The primarily device that is in charge of controlling the robot | $95.19 | Link | | Robot Chassis | Base of Robot | $18.99 | Link | | Screwdriver Kit | Tighten screws on robot | $5.94 | Link | | Ultrasonic Sensor | Track distance at the front of the robot | $9.99 | Link | | H Bridges | To change the direction of rotation of DC motors | $8.99 | Link | | Pi Camera | Detect objects of different colors and used for live feed | $12.86 | Link | | Electronics Kit | Used for wires, resistor, LEDs, buttons and breadboard | $11.98 | Link | | Motors | Spin the wheels | $11.98 | Link | | SD Card Adapter | Used when flashing SD cards | $9.99 | Link | | Digital Multimeter (Not Used) | Measure electrical quantities | $11 | Link | | Champion Sports Ball | The object for the robot to track | $16.73 | Link | | AA Batteries (Not Used) | Power source for the robot | $18.74 | Link | | USB Power Bank & Cable | Power source for the robot | $16.19 | Link | | Double Sided Tape | Ease of build for ball tracking robot | $7.99 | Link | | Raspberry Pi Zero 2W | Modification: controller | $26.99 | Link | | Accelerometer | Modification: Enable gesture control mode | $9.00 | Link | | Adafruit Electret Microphone Amplifier - MAX4466 (Not Used) | Modification: Enable voice control mode | $13.99 | Link | | M-F Jumpers | For controller | $6.63 | Link | | F-F Jumpers (Not Used) | For controller | $6.63 | Link | | Electrical Tape (Not Used) | Ensure the connection between LEDs and wire | $5.99 | Link | | Small Breadboards | To put accelerometer/RGBLED/Buttons on | $5.99 | Link | | Micro SD Cards | For Raspberry Pi 0 | $16.99 | Link |

Resources
